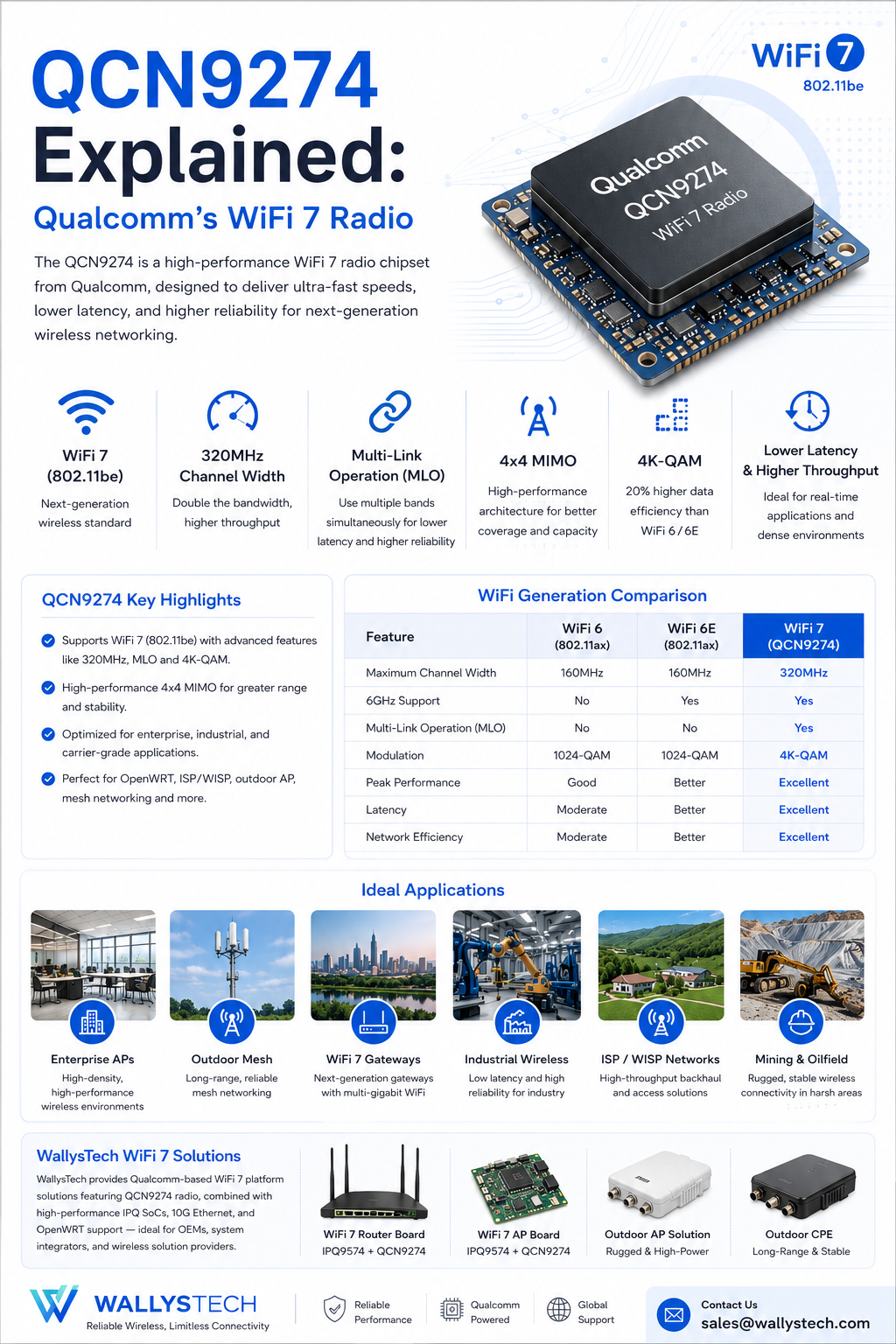

QCN9274 Explained: Qualcomm’s WiFi 7 RadioAs WiFi 7 moves from concept to real deployment, one chipset is getting significant attention from wireless developers, OEMs, and ISP solution providers: Qualcomm QCN9274.
Designed for next-generation wireless networking, the QCN9274 brings ultra-high throughput, lower latency, wider channels, and Multi-Link Operation (MLO) into enterprise, industrial, and carrier-grade applications.
For developers building high-performance access points, outdoor mesh systems, or OpenWRT-based WiFi 7 platforms, the QCN9274 has become one of the most important Qualcomm radios in the market. What Is QCN9274?The QCN9274 is a high-performance WiFi 7 radio chipset from Qualcomm designed for:
Enterprise APs
Outdoor wireless platforms
Industrial mesh networking
ISP/WISP deployments
WiFi 7 gateways
Embedded networking systems
It supports the latest IEEE 802.11be standard, commonly known as WiFi 7.
Compared with previous WiFi 6/6E solutions, the QCN9274 introduces several major improvements:
320MHz ultra-wide channels
Multi-Link Operation (MLO)
4K-QAM modulation
Lower latency
Higher throughput
Better spectrum efficiency
These features make WiFi 7 ideal for next-generation wireless infrastructure. Key Features of QCN92741. WiFi 7 (802.11be) SupportThe QCN9274 fully supports WiFi 7 technologies, enabling dramatically higher wireless capacity compared with WiFi 6E.
Key WiFi 7 improvements include:
Higher PHY rates
Better multi-user efficiency
Reduced congestion
Improved real-time performance
This is especially important for:
Dense enterprise environments
Industrial wireless deployments
Multi-user outdoor networks
Carrier-grade AP systems
2. 320MHz Channel BandwidthOne of the biggest upgrades in WiFi 7 is support for 320MHz channels.
320,\mathrm{MHz} = 2 \times 160,\mathrm{MHz}
Compared with WiFi 6E, WiFi 7 can double the available channel bandwidth, significantly improving throughput performance.
This allows:
Faster wireless backhaul
Multi-gigabit wireless links
High-density AP deployments
Lower latency applications
For WISP and enterprise networks, wider channels mean higher capacity and improved user experience. 3. Multi-Link Operation (MLO)MLO is one of the most important WiFi 7 technologies.
Instead of using only one band at a time, MLO allows devices to simultaneously use multiple frequency bands.
Example:
5GHz + 6GHz
2.4GHz + 5GHz
Multiple links dynamically combined
Benefits include:
Lower latency
Higher reliability
Better roaming
Improved throughput stability
This is especially valuable for:
Outdoor mesh networking
Real-time industrial systems
Video streaming
Wireless backhaul
4. High-Performance 4x4 Radio ArchitectureThe QCN9274 supports high-performance 4x4 MIMO configurations.
This provides:
Better signal quality
Higher throughput
Longer wireless range
Improved multi-user performance
For outdoor AP deployments, this is critical in maintaining stable links over long distances. Why QCN9274 Matters for OpenWRTThe OpenWRT community is rapidly moving toward WiFi 7 hardware platforms.
The QCN9274 is particularly attractive because it enables:
High-performance OpenWRT APs
Custom enterprise gateways
Outdoor mesh systems
ISP-grade wireless infrastructure
Popular use cases include:
OpenWRT WiFi 7 routers
Wireless mesh APs
Carrier-grade outdoor APs
Long-range wireless bridges
For developers looking to build custom networking solutions, Qualcomm-based WiFi 7 platforms offer excellent scalability and performance potential.
QCN9274 for Outdoor and Industrial WirelessIndustrial wireless environments require:
Long-term stability
Rugged deployment capability
Long-range connectivity
High throughput
Low latency
The QCN9274 is well suited for:
Mining sites
Oil & gas deployments
Smart cities
Rural broadband
Outdoor wireless backhaul
Combined with rugged hardware and OpenWRT support, it enables carrier-grade outdoor wireless systems. QCN9274 vs Previous WiFi GenerationsFeatureWiFi 6WiFi 6EWiFi 7 (QCN9274)
Maximum Channel Width160MHz160MHz320MHz
6GHz SupportNoYesYes
MLONoNoYes
4K-QAMNoNoYes
Lower LatencyModerateBetterExcellent
Multi-Gigabit WirelessLimitedGoodExcellentThe transition from WiFi 6E to WiFi 7 is not just about speed — it is also about network efficiency, reliability, and latency reduction. WallysTech WiFi 7 SolutionsWallysTech Official Website
Wallys Communications provides Qualcomm-based wireless hardware platforms designed for:
OpenWRT development
ISP/WISP deployments
Enterprise networking
Industrial wireless systems
Outdoor AP solutions
WallysTech WiFi 7 platforms combine:
Qualcomm IPQ series SoCs
QCN9274 radios
Multi-gigabit Ethernet
Tri-band wireless support
OpenWRT compatibility
These platforms are suitable for developers, OEMs, system integrators, and wireless solution providers building next-generation WiFi infrastructure. Final ThoughtsThe QCN9274 represents a major step forward for wireless networking.
With support for:
WiFi 7
320MHz channels
Multi-Link Operation
4K-QAM
High-performance MIMO
it enables a new generation of:
Enterprise APs
Outdoor mesh systems
ISP wireless infrastructure
Industrial wireless networks
As demand for high-capacity, low-latency networking continues to grow, Qualcomm WiFi 7 platforms based on the QCN9274 are expected to play a major role in the future of wireless connectivity.
